Product Detail

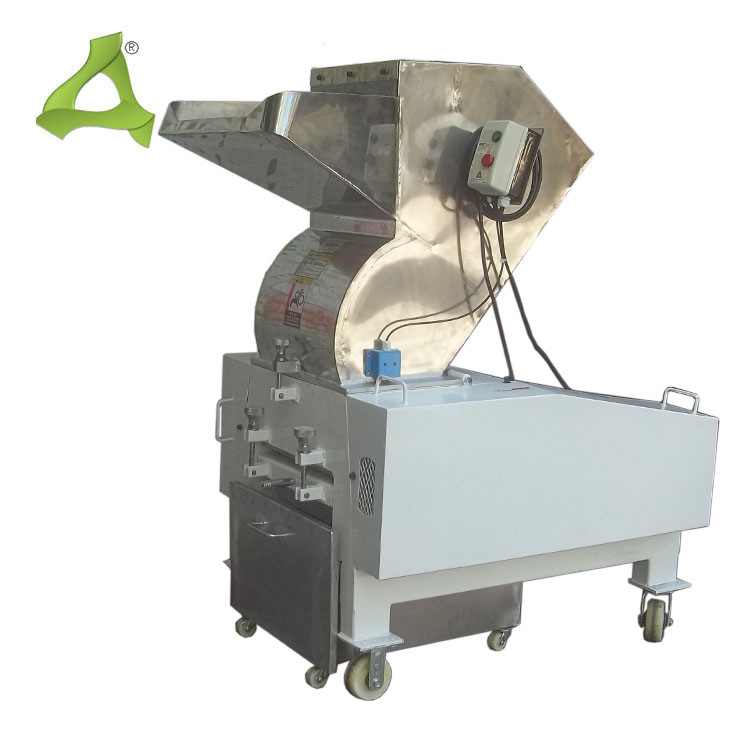

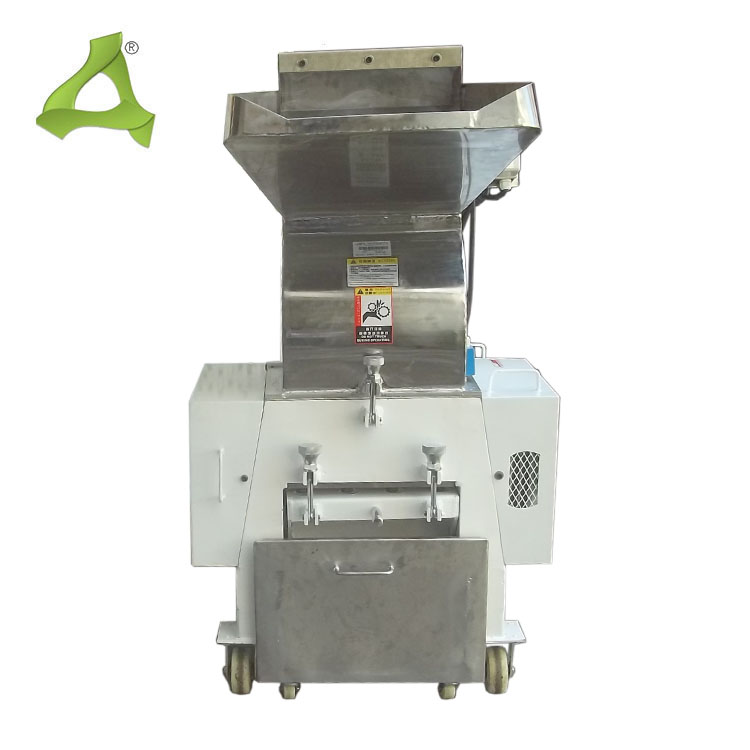

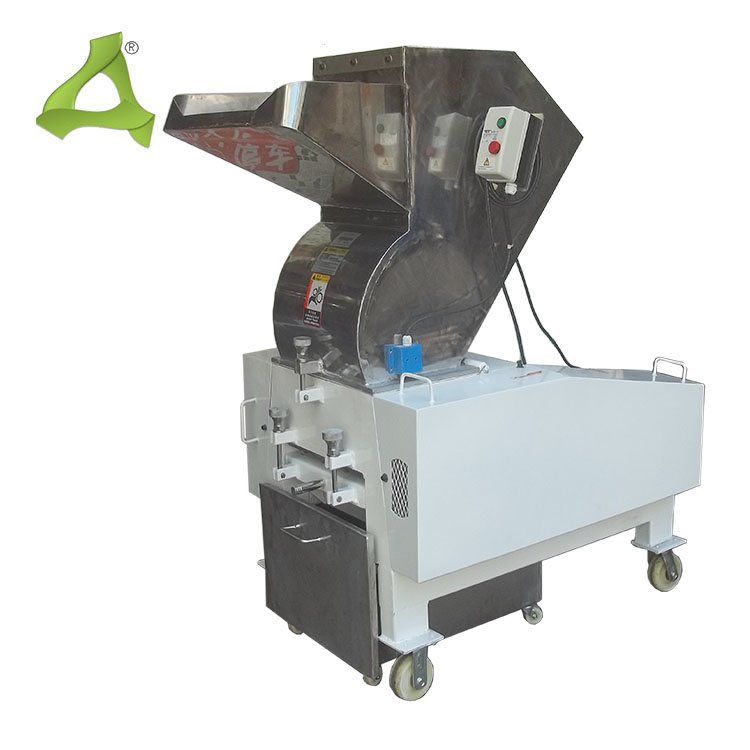

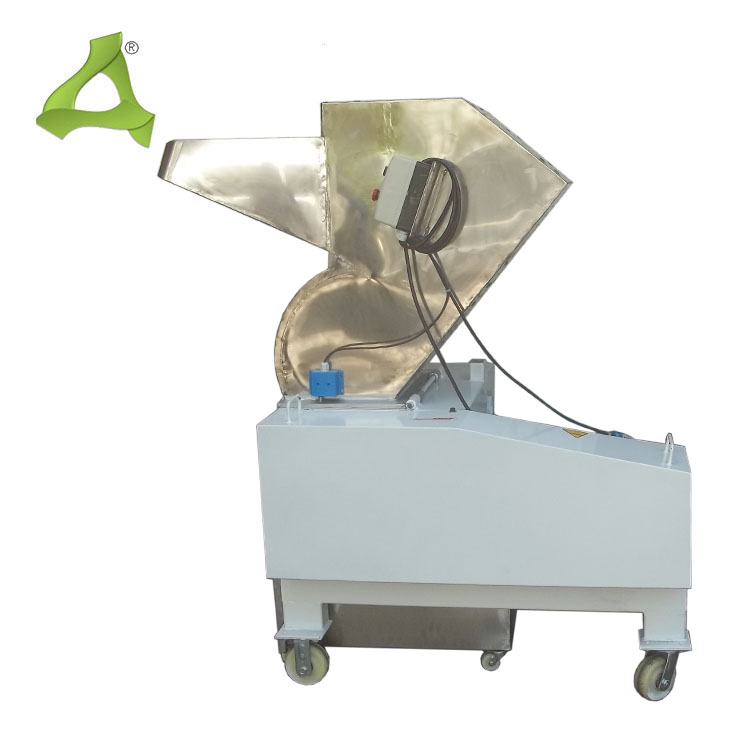

Customized 10HP crusher stainless steel feeding hopper

. Suitable for crushing tea leaves, medical products, etc. to avoid secondary pollution of raw materials
. Model: YMSC-3824V-10HP
. Motor power: 10HP 7.5kw
. Rated voltage: 3-phase 380V/50HZ
. Grinding chamber diameter: 380x240mm
. Cutting tools: 2 * 3 moving knives
. Cutting tools: 2 fixed blades
. Tool material: 6CrW2si
· Mesh aperture: 10mm
· Crushing capacity: 50-100kg/hour
· Mechanical dimensions: 1250 * 820 * 1280mm
· The mechanical weight is about 380kg
· Customized according to customer production requirements
产品详情



Performance characteristics:


The V-blade crusher adopts a V-blade holder structure, which is suitable for flexible packaging materials such as plastic film, space bags, ropes, masks, and textile bags;


2. The processing technology is mature, and the rotor undergoes multiple processing steps. Important components such as the casing are processed as a whole to ensure smooth and reliable mechanical operation;


3. Sealed bearings are used to maintain good performance for long periods of bearing rotation. The blade design is reasonable, the product particles are uniform, and the appearance design is beautiful and generous;


4. Standard special high-quality material cutting tools, with good toughness, wear resistance, adjustable blade expansion and contraction, and can be reused multiple times;


5. Multiple safety protection devices are installed to ensure safe operation. Mechanical opening and closing of the feeding hopper, easy to operate;


6. Optional conveyor belt feeding, automatic scrap recycling system, metal separator, powder screening system, etc., accepting non-standard customization.





——————————————————————————————————————————————————————————————————————————————
