Product Detail

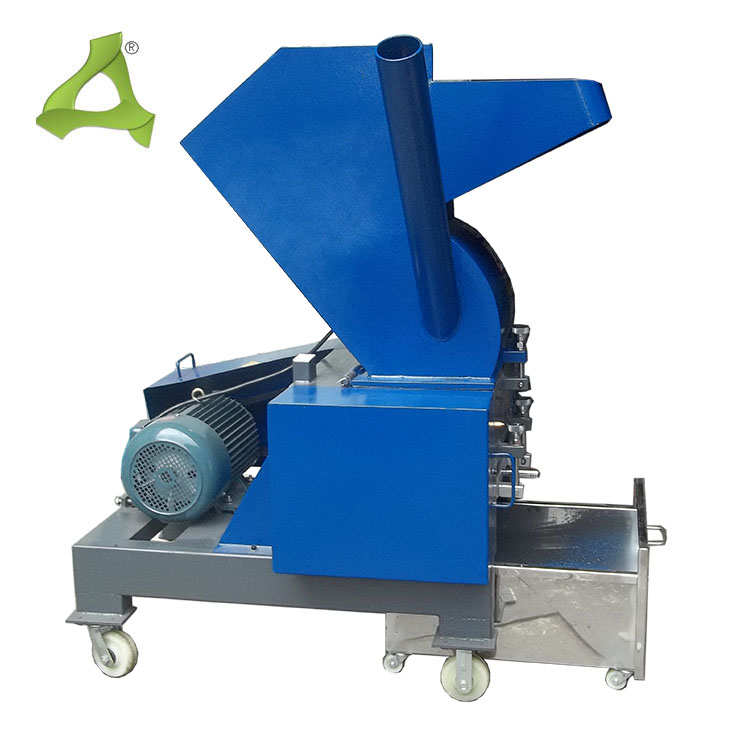

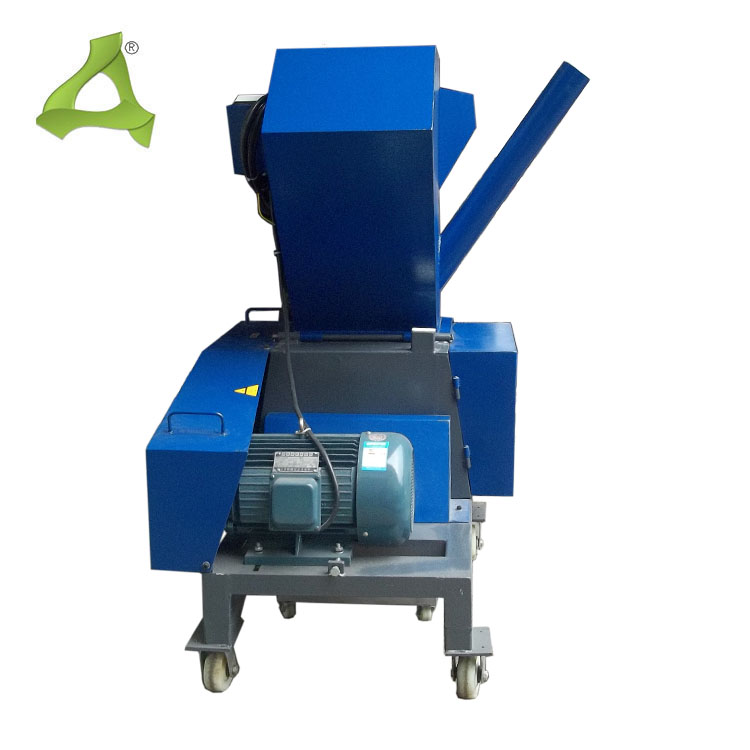

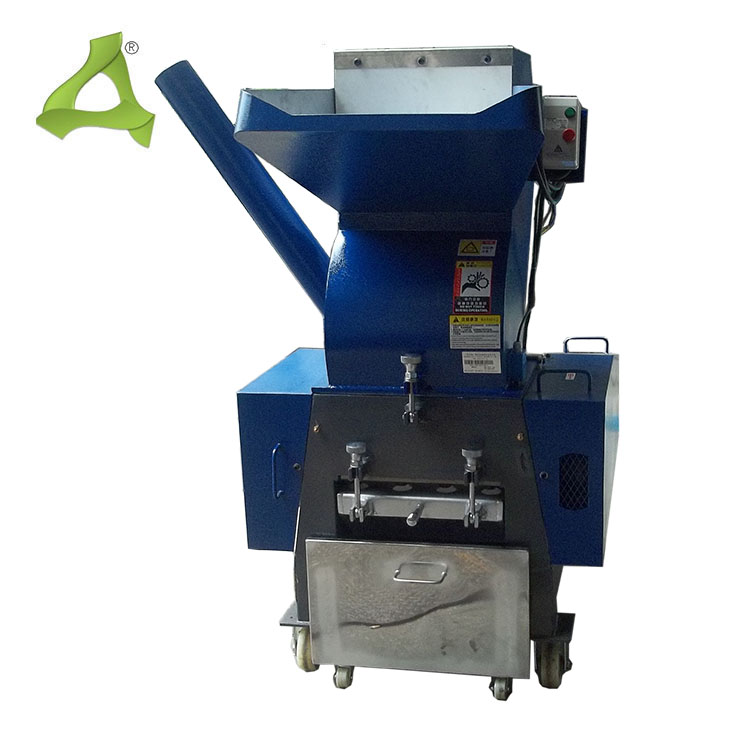

Small crusher for water pipes

. Suitable for crushing thin tube plastic
. Model: YMSC-3824Y-10HP
. Motor power: 10HP 7.5kw
. Rated voltage: 3-phase 380V/50HZ

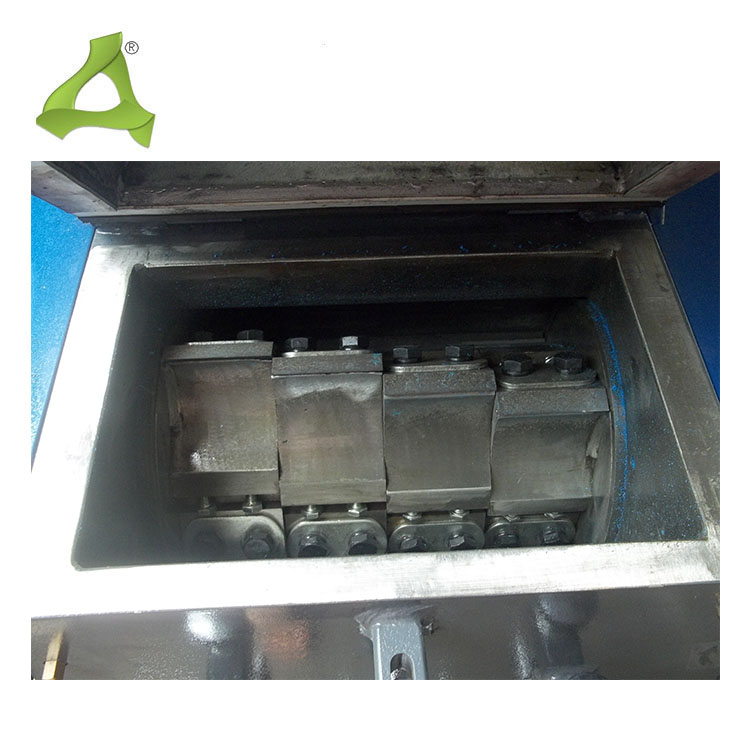

. Grinding chamber diameter: 380x240mm
. Cutting tools: 12 moving blades
. Cutting tools: 2 fixed blades
. Tool material: 6CrW2si
· Mesh aperture: 10mm
· Crushing capacity: 200-400kg/hour
· Mechanical dimensions: 1250 * 820 * 1280mm
· The mechanical weight is about 380kg
· Customized according to customer production requirements
产品详情



Performance characteristics:


1. Claw knife crusher is designed to meet strict requirements and not easily break recycled materials, suitable for various types of hard plastics (such as round bar materials, block shaped material heads, ball shaped material heads, shoe last materials, ordinary rubber mouths, etc.);


2. The tool holder is specially developed and designed for hard plastics, with strong force and optimized cutting angle to improve cutting efficiency and reduce tool wear;


3. Using well-known brand bearings, durable and long-lasting;


4. Standard special high-quality material cutting tools, with good toughness, wear resistance, adjustable blade expansion and contraction, and can be reused multiple times;


5. The feeding hopper is mechanically opened and closed, making it easy to operate;


6. Optional conveyor belt feeding, automatic scrap recycling system, metal separator, powder screening system, etc., accepting non-standard customization.





——————————————————————————————————————————————————————————————————————————————
