Product Detail

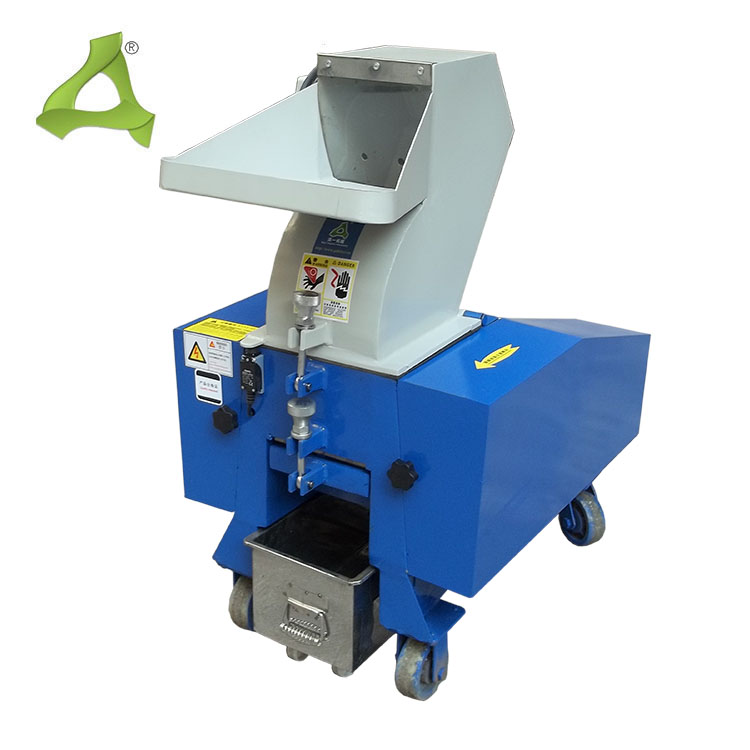

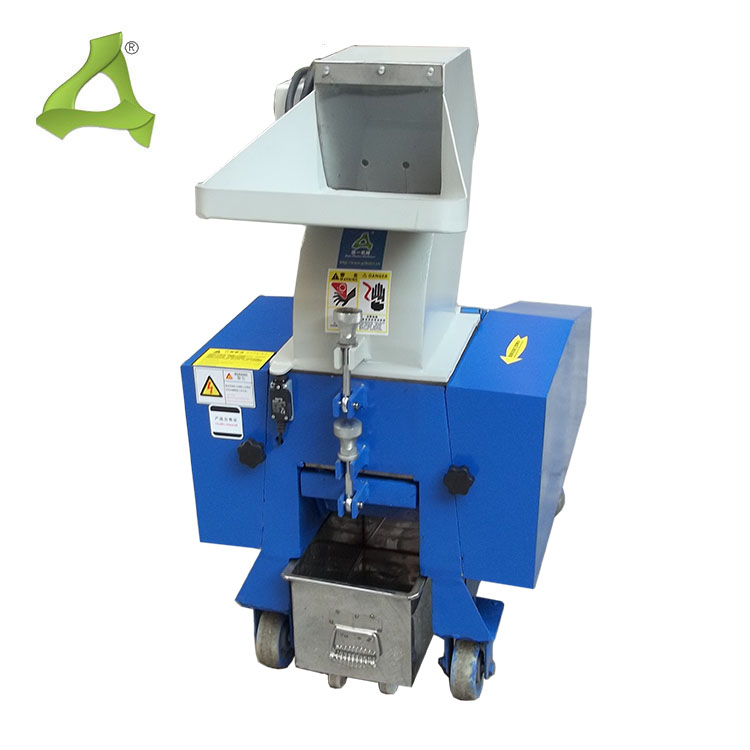

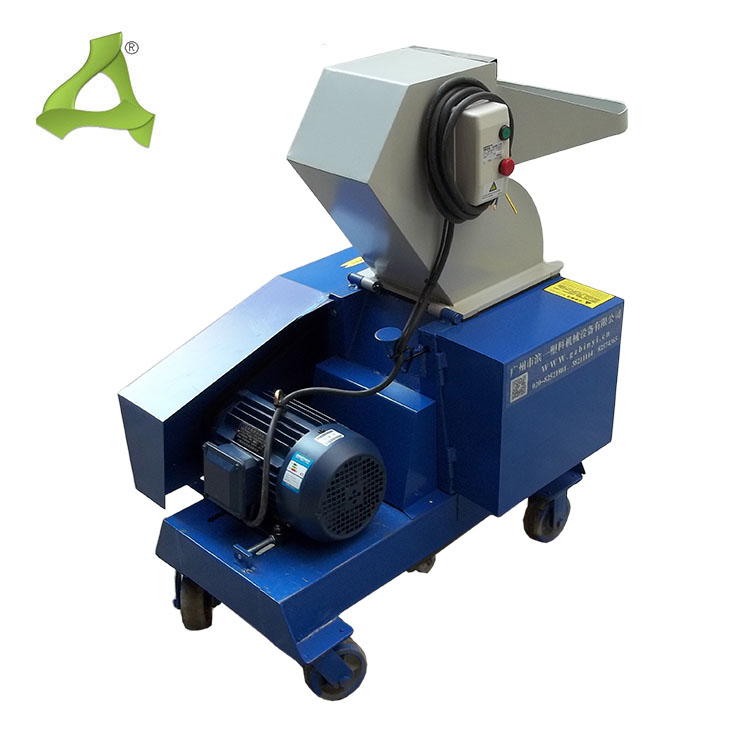

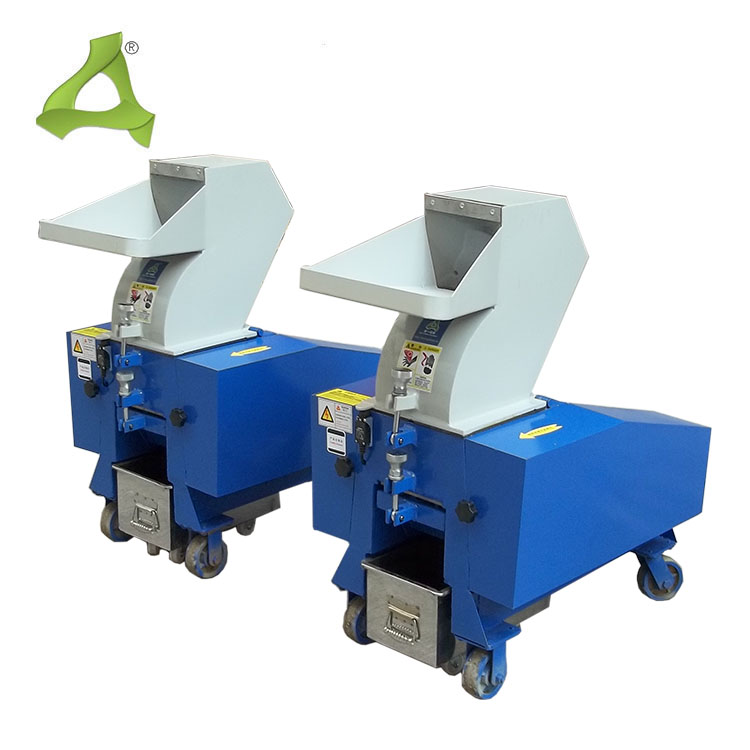

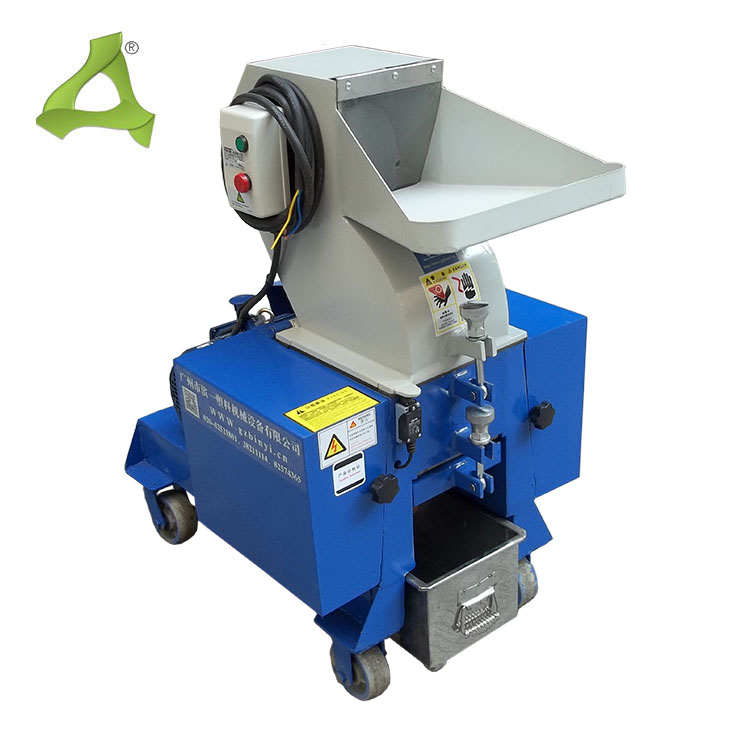

5HP crusher

. Suitable for crushing various hard plastics and granular materials
. Model: YMSC-2520Y-5HP
. Motor power: 5HP 3.75kw
. Rated voltage: 3-phase 380V/50HZ
. Grinding chamber diameter: 250x200mm
. Cutting tools: 12 moving blades
. Cutting tools: 2 fixed blades
. Tool material: 6CrW2si
· Mesh aperture: 8mm
· Crushing capacity: 50-200kg/hour
· Mechanical dimensions: 900 * 650 * 1150mm
· Mechanical weight approximately 225kg
· Customized according to customer production requirements
产品详情



Performance characteristics:


1. Claw knife crusher is designed to meet strict requirements and not easily break recycled materials, suitable for crushing ordinary sheets, pipes, profiles, and water outlet materials;


2. The tool holder is specially developed and designed for hard plastics, with strong force and optimized cutting angle to improve cutting efficiency and reduce tool wear;


3. Using well-known brand bearings, durable and long-lasting;


4. Standard special high-quality material cutting tools, with good toughness, wear resistance, adjustable blade expansion and contraction, and can be reused multiple times;


5. The feeding hopper is mechanically opened and closed, making it easy to operate;


6. Optional conveyor belt feeding, automatic scrap recycling system, metal separator, powder screening system, etc., accepting non-standard customization.





——————————————————————————————————————————————————————————————————————————————
